Dimensions: length, width, height, wheelbase and track

The outside dimensions of the VX220 and Speedster from a dimensioned drawing: overall length, height, wheelbase, front and rear track, and the width with and without mirrors, in millimetres.

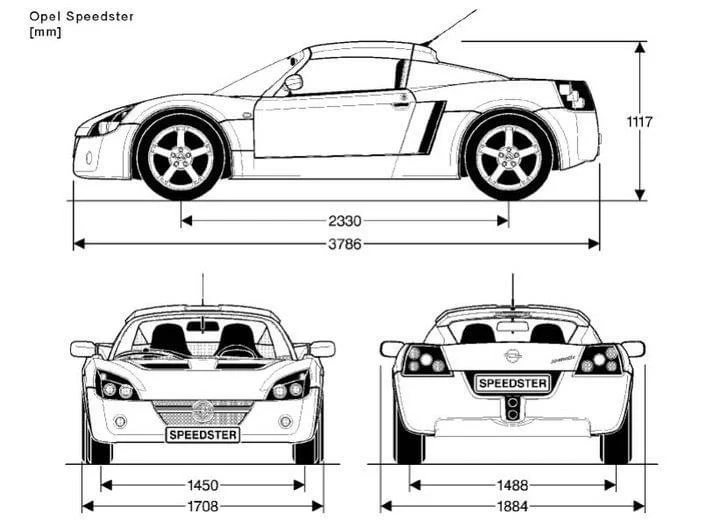

These figures come from a drawing headed "Opel Speedster [mm]". The VX220 and the Speedster are the same car sold under different names, so the figures apply to both.

Dimension	mm
Overall length	3,786
Wheelbase	2,330
Height	1,117
Front track	1,450
Rear track	1,488
Overall width, body only (without mirrors)	1,708
Overall width, including mirrors	1,884

The width figures are as supplied: 1,708 mm is the body without the mirrors and 1,884 mm is with them. The drawing doesn't say what weight or ride height the height figure is for.

Help wanted

We don't have the source of this drawing, the weight, the boot dimensions or the ground clearance. If you have the handbook figures, please tell us.
