The relays and fuses are in four places. The original diagram is at the bottom of this page. "Near side" is the passenger side on a right-hand-drive car.
Jump to: Bonnet · Boot · Passenger footwell · Behind the switches
Bonnet, near side
Relays
| Relay | Circuit | Type |
|---|---|---|
| K12 | Horn | Grey, Bosch 0332209159 |
| K13 | Radiator fan | Grey, Bosch 0332209159 |
| K19 | Low beam | Grey, Bosch 0332209159 |
| K2 | High beam | Grey, Bosch 0332209159 |
Fuses
| No. | Circuit | Rating |
|---|---|---|
| 1 | Rear fog | 3 A |
| 2 | Alarm | 2 A |
| 3 | Interior fan | 20 A |
| 4 | Wiper motor | 15 A |
| 5 | Stop lamp / reversing lamp | 7.5 A |
| 6 | Indicators | 7.5 A |
| 7 | Ignition services | 10 A |
| 8 | Battery services | 7.5 A |
| 9 | Hazards | 10 A |
| 10 | Horn | 7.5 A |
| 11 | Alarm / interior lamp | 10 A |
| 12 | Cooling fan | 25 A |
| 13 | (blank in the list) | |
| 14 | Head lamps | 25 A |
| 15 | Radio | 20 A |
| 16 | Side lamp, left | 5 A |
| 17 | Side lamp, right | 5 A |
| 18 | (blank in the list) | |
| 19 | Lamp switches | 10 A |
| 20 | (blank in the list) | |
| 21 | Front fog | 15 A |
| 22 | ABS | 10 A |
The list stops at 22. The thread doesn't say whether the box has more positions, or what the three blank numbers are (spare or unused).
Boot, near side wheel arch
Relays
| Relay | Circuit | Type |
|---|---|---|
| K18 | ECU | Brown, Siemens AMR 1088 |
| K14 | Starter | Yellow, Lotus B116M0032 (a start inhibit module) |
| K16 | Fuel pump | Grey, Bosch 0332209159 |
Starter relay number. The diagram labels the yellow relay K14. In 2016 an owner said that according to the wiring diagram it should be K24. The thread doesn't settle it.
K18, the brown ECU relay, is one of the things owners check when a car won't start with a P1512 fault. See P1512 and a car that won't start.
Fuses
| Circuit | Rating |
|---|---|
| Cigarette lighter | 20 A |
| Fuel pump | 20 A |
On the Turbo, one owner read the wiring diagrams and found four boot fuses, none of them 50 A: FR1, 20 A, cigarette lighter. FR2, 20 A, fuel pump. FR3, 7.5 A, coolant pump (additional). FR4, 7.5 A, central locking backup battery. He calls his understanding of the circuit diagrams "rudimentary". Another owner had thought one of his was 50 A, and it was suggested he had misread it.
Passenger footwell
| Relay | Circuit | Type |
|---|---|---|
| K10 | Wipers | On the car pictured, replaced with an intermittent relay from a VW (357 955 531 #99) |
| K31 | Flasher unit |
Driver's side, behind the switches
| Relay | Circuit | Type |
|---|---|---|
| K4 | Front fog lamp | |
| K5 | Rear fog lamp | |
| K20 | Parking lamp |
Identifying the relays

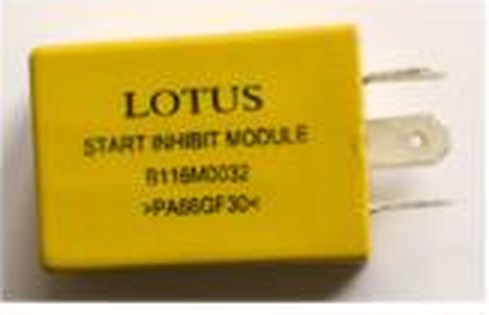

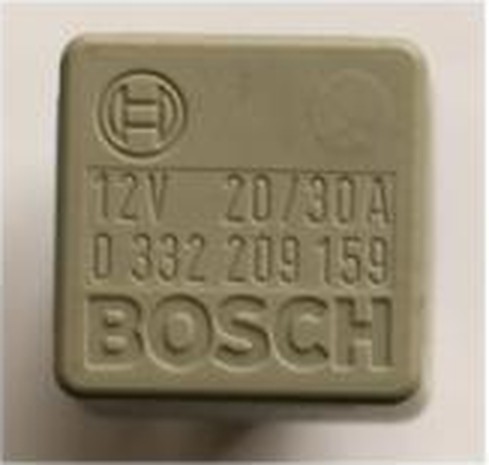

The grey Bosch relay is used for five of the circuits (horn, radiator fan, low beam, high beam and fuel pump). The yellow one is the Lotus start inhibit module.

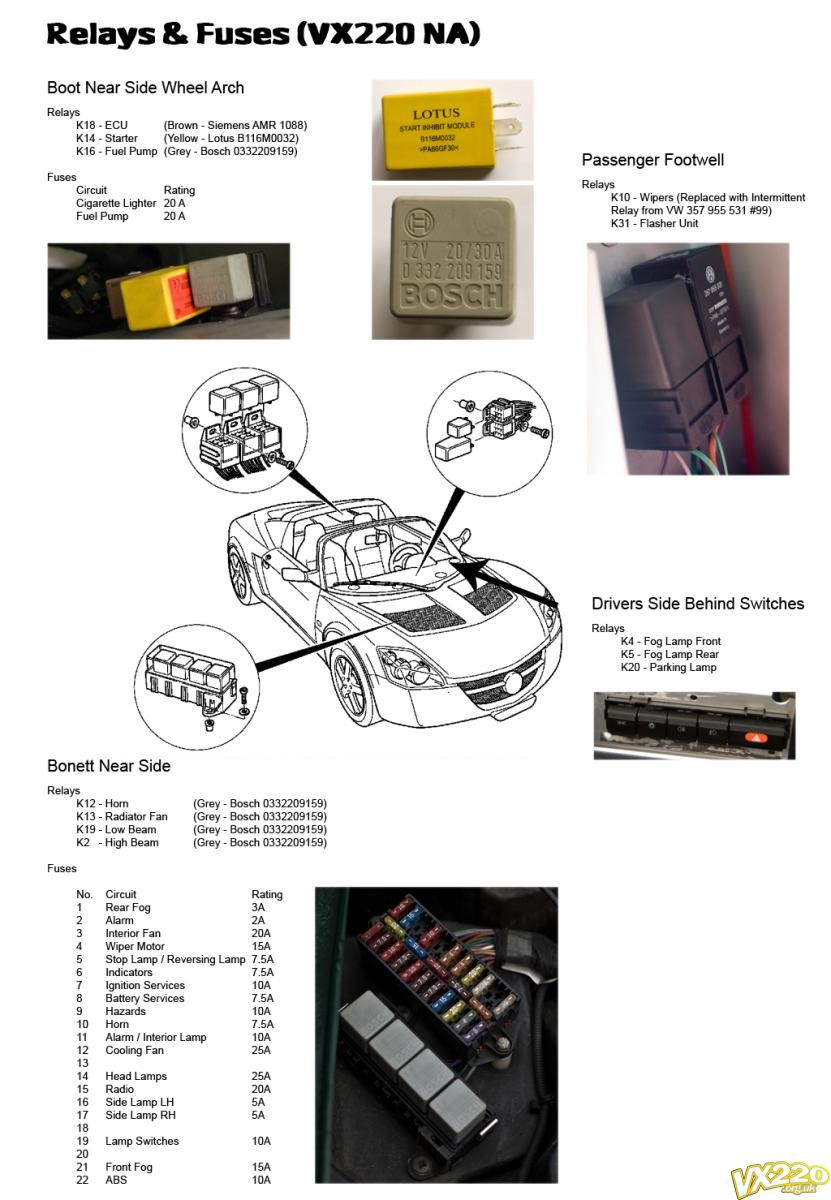

The original diagram
